NIR spectrometer

Product Details Characteristics Parameter Message

Product Details

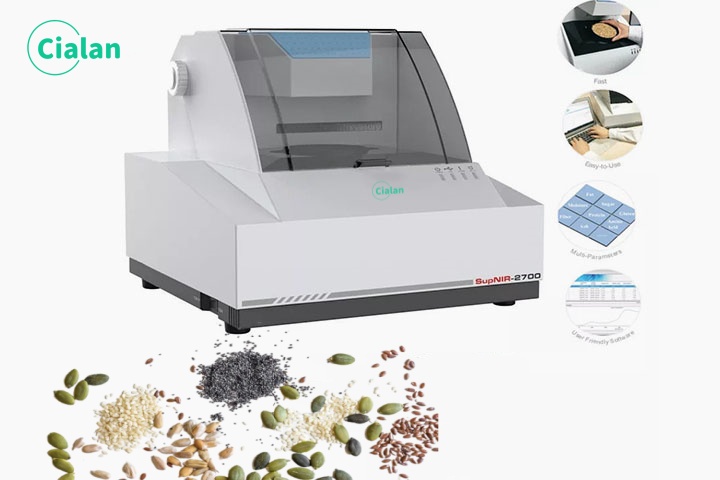

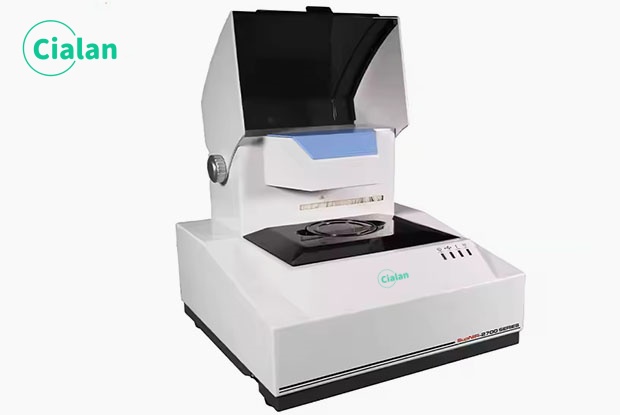

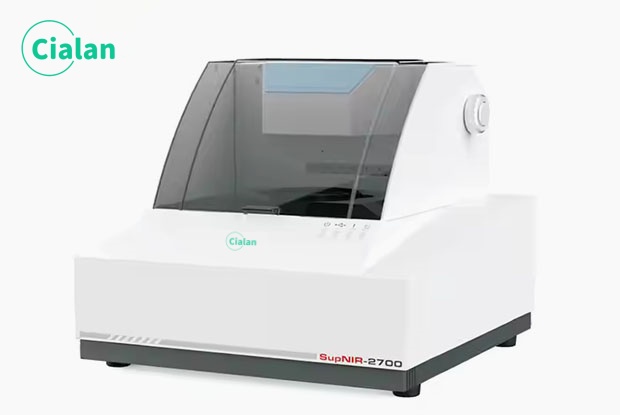

NIR spectrometer
Application
Industries :Grian,Oilseed processing,Flow milling,Starch production,Sugar production,Ethanol production,Raw material of feed,Feed final products
Parameters :Moisture,protein,fat/oil,ash,fiber,starch,amino acid,sugar,dry matter and more

Ideal for
Incoming raw material
Laboratory testing
Final product release
Products pricing
Research

High performance
Wavelength repeatability <0.01nm
Wavelength accuracy <0.1nm
Background noise <50uA
Analysis time <10s

Characteristics

Fast : 10-second analysis of all types of samples.

High performance : High accuracy,Repeatability,stability and reliability.

Easy to implement,operate and maintain.

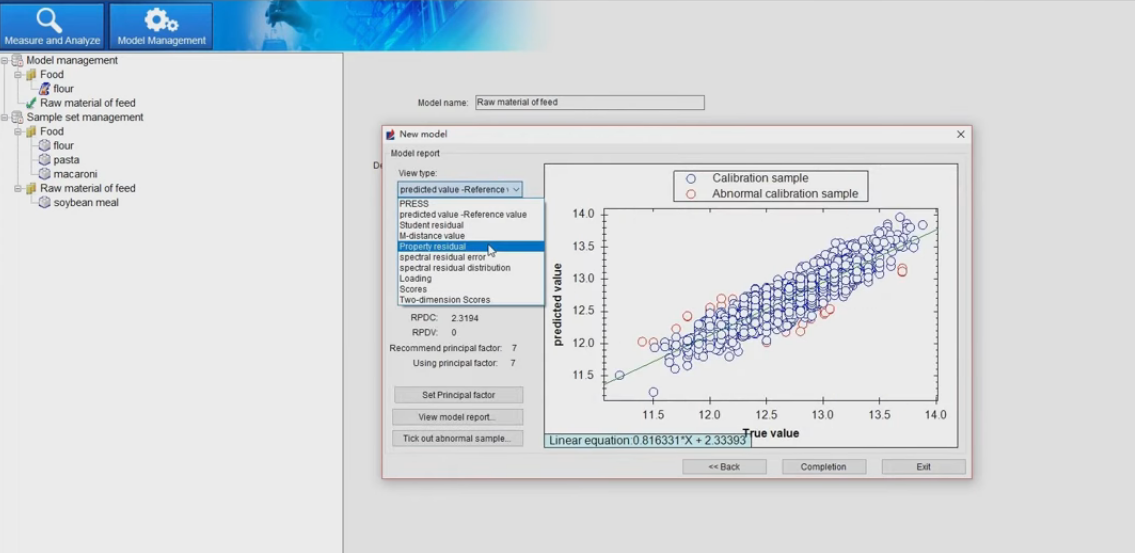

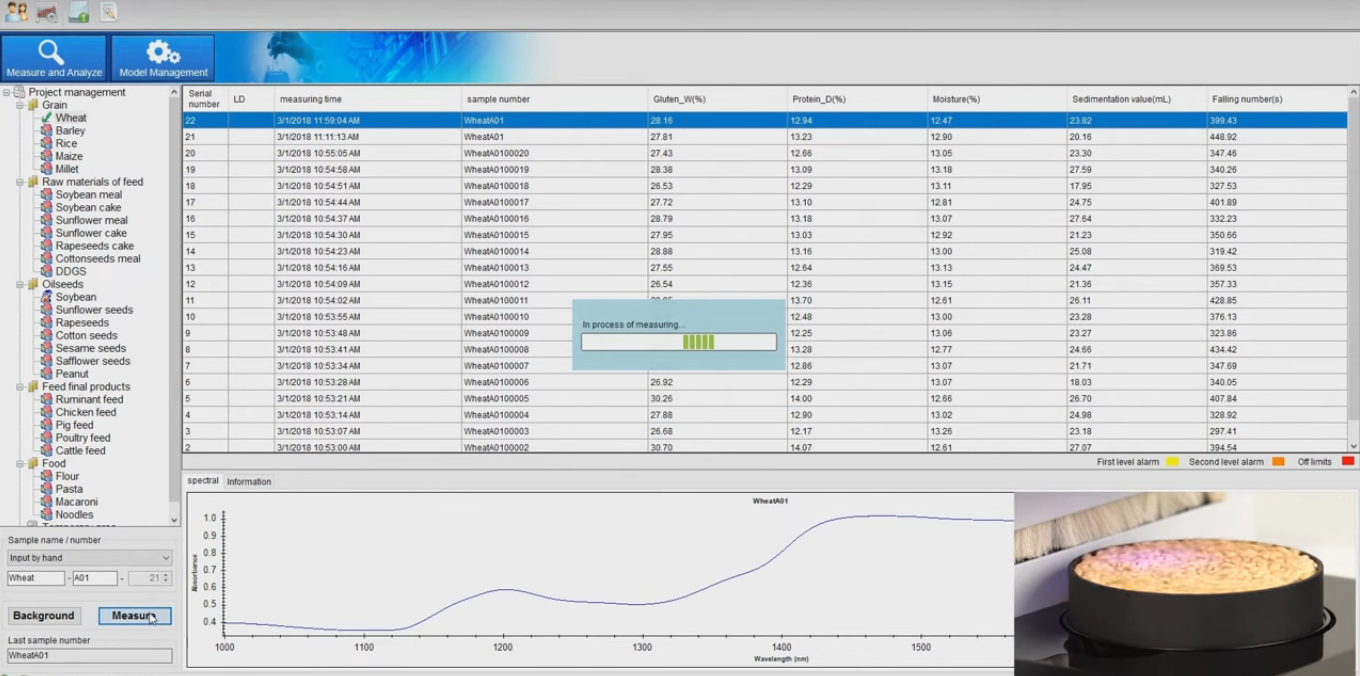

User-friendly software with multiple statistics analysis.

Moden technology and a wide range of available calibrations free of charge.

Tags:

NIR spectrometer supplier

Parameter

A wide range of calibrations

Calibrations	Parameters
Wheat(granular)	Moisture	Crude protein(Wet)	Crude protein(Dry)	Wet gluten	Hardness	Falling number	Dry gluten
Wheat(Milled)	Moisture	Crude protein(Wet)	Crude protein(Dry)	Crude ash	Wet gluten
Millet	Moisture	Lysine_D	Amylose_D	Protein_D	Fat_D	Gel	Vitamin B1
Rice	Moisture Crude	protein	Amylose	Eating quality
Flour	Moisture	Crude ash	Wet gluten	Crude protein	Water absorption	Falling number
Soybean(granular）	Moisture	Crude protein(Wet)	Crude oil(Wet)	crude protein(Dry)	Crude oil(Dry)
Soybean meal	Moisture	Crude protein	Crude ash	Crude oil	Crude fiber	PS	UA
Corn(granular)	Moisture	Crude protein	Volume weight	Crude oil	Starch	Crude ash	Crude fiber
Cottonseed	Moisture	Crude protein	Oil
Cottonseed meal	Moisture	Crude protein	Crude ash	Crude oil	Crude fiber	PS
Rapeseed	Moisture	Crude oil	Glucosinolate	Erucic acid	Palmitic acid C16:0	Eicosenoic acid	Crude protein
Rapeseed cake	Moisture	Crude protein(Wet)	Crude protein(Dry)	Crude ash	Crude fiber	Crude oil(Wet)	Crude oil(Dry)
Sunflower seeds	Moisture	oil
Sunflower meal	Moister	Crude protein	Residual oil
DDGS	Moisture	Crude protein	Crush ash	phosphorus	Crude oil	Crude fiber
Pig feed	Moisture	Crude protein	Crude ash	Calcium	Phosphorus	Salt	Crude oil	Crude fiber
Cattle feed	Moisture	Crude protein	Crude ash	Calcium	Phosphorus	Salt	Crude oil	Crude fiber
Chicken feed	Moisture	Crude protein	Crude ash	Calcium	Phosphorus	Salt	Crude oil	Crude fiber
Fish meal	Moisture	Crude protein	Crude ash	Calcium	Phosphorus	Salt	Crude oil	Crude fiber
Meat powder	Moisture	Crude protein	Crude ash	Calcium	Phosphorus	Crude oil
Sow feed	Crude ash	Moisture	Crude protein	NaCl
Feather meal	Moisture	RProtein	VBN	Protein	RPratio	Ash	Fat	AV

Technical parameter

Wav elength range	1000-1800 nm, SupN IR 2720
Wav elength accuracy	<0.1 nm to traceable standard reference material

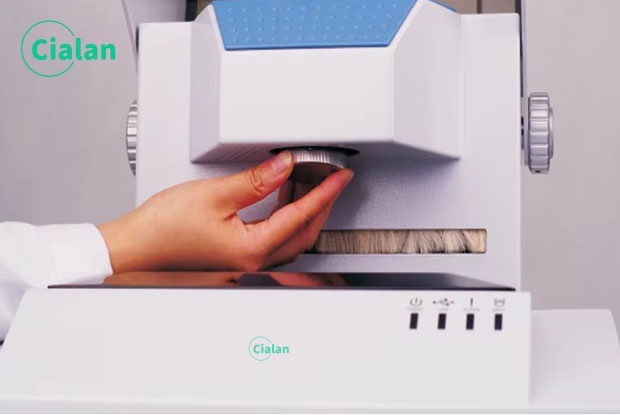

Light Source	Tungsten halogen lamp with expected lifespan more than 5000 hours, User changeable via specific disassemble tool
M easurement mode	Diffuse reflectance
Detector	High Performance ultra- cooled InGaAs (Indium Gallium Arsenide) detecor to -25℃, dual stage temperature stabilized
Optical Brandwith	10.95 ±0.3 nm @ 1395.5 nm
Background noise	Less than 50 μA

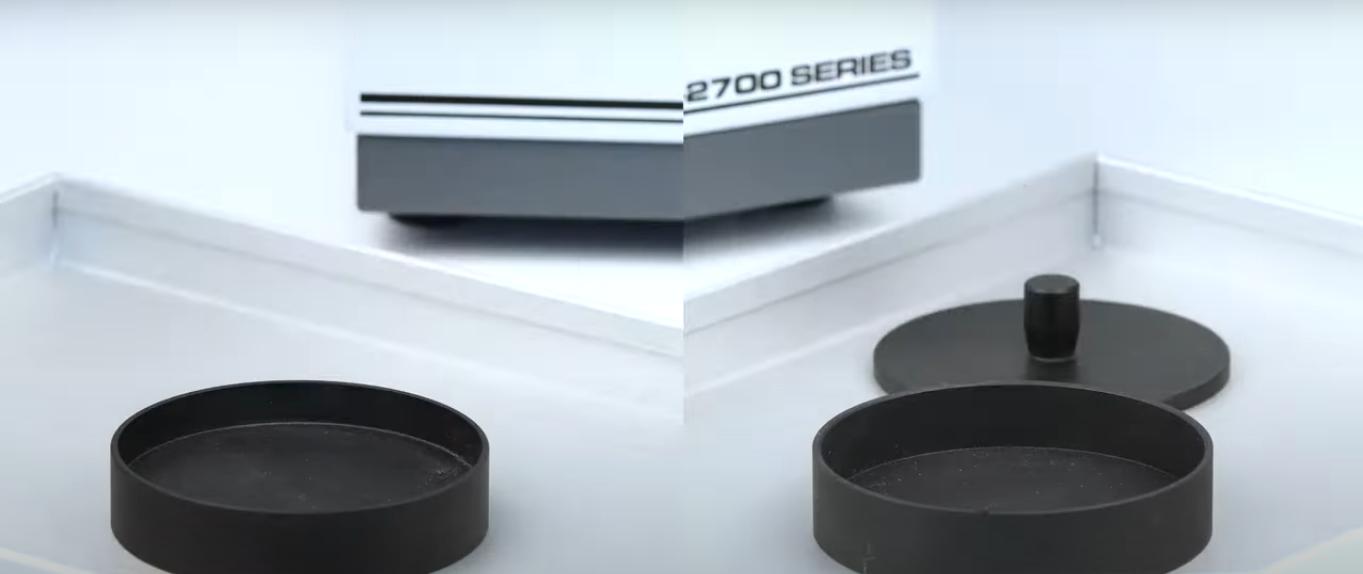

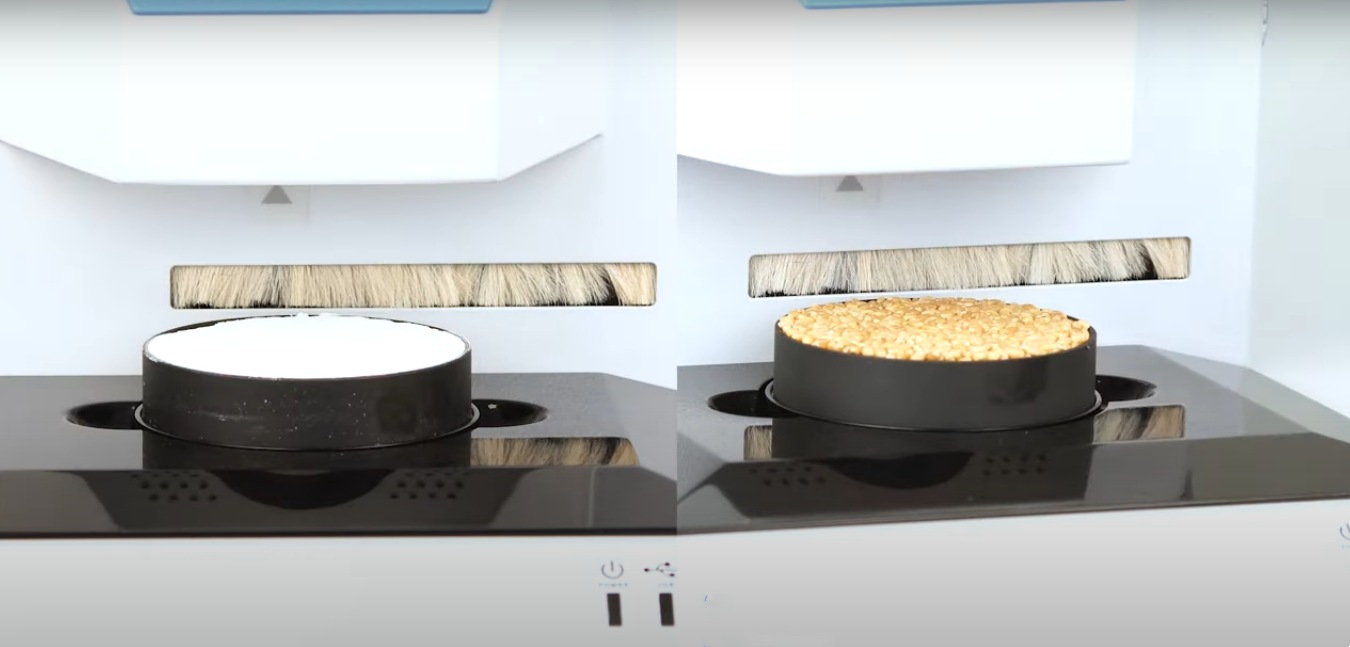

Sample volume	Flexible 50-150 ml, 3 types of sample cup
Analysis time	6-10 sec. (30 scans / sample =6s, scan speed= 5 times/ sec.)
Ambient temperature	5-35 ℃
Ambient humidity	<90% RH, < 85% RH recommended
Power Supply	198-242 V, frequency 50 Hz, 0.5 A
Dimensions	403 ×391 ×374 mm
Weight	18kg
