Protein Analyzer

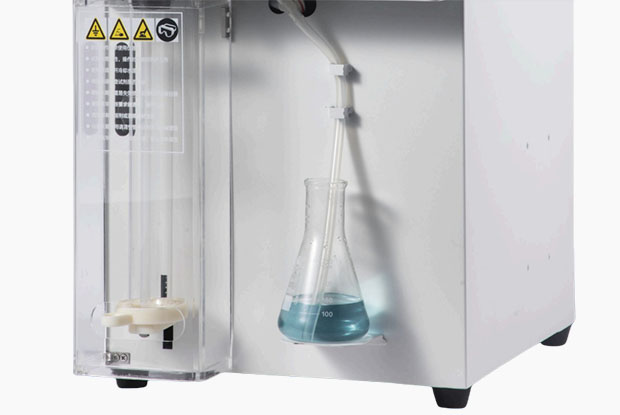

Cialan Semi-Automatic Protein Analyzer For Kjeldahl Nitrogen Determination

Cialan is a premier manufacturer of protein analyzer in China, we provide protein analysis equipment, kjeldahl protein determination and professional after-service.

0.1-240 mg N

Analysis range

≤ 0.5%

Precision (RSD)

4-inch LCD

Touch screen

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

Kjeldahi method is a classic technique for determining nitrogen content and protein content.

It is widely used for the determination of nitrogen and protein in soil, food, livestock, agricultural products, feed, and other nitrogen-containing compounds.

The process for sample analysis using this method involves three main steps: sample digestion, distillation and separation, and titration analysis.

Characteristics

The operating system adopts a 4-inch color touch screen.

The system automatically shuts down after 60 minutes of no operation, saving energy, ensuring safety, and providing peace of mind.

The safety door ensures the safety of the operator.

The steam system has a low water alarm to prevent accidents by stopping the machine.

The steam boiler has an over-temperature alarm to prevent accidents by stopping the machine.

Cialan is one of the suppliers of the national standard GB/T 33862-2017 for"Fully (Semi) Automated Kjeldahi Nitrogen Analyzer." Therefore, the Kjeldahl analyzer series products we develop and manufacture comply with both the GB standard and relevant international standards.

Tags:

Automatic kjeldahl nitrogen analyzer

Parameter

Model	CNK200
Analysis range	0.1-240 mg N
Precision (RSD)	≤ 0.5%
Recovery rate (indication error)	99-101% (±1%)
Sample analysis time	3-5 min/(cooling water temperature 18 ℃)
Distillation time	Adjustable from 0-9990 seconds
Touch screen	4-inch color LCD touch screen
Automatic shutdown time	60 minutes
Working voltage	AC220V/50Hz
Heating power	2000W
Boundary dimension	350 * 460 * 710mm
Net weight	23Kg
Product packing list
Power Cable 1. Reagent Tubing 4. Cooling Water Hose 2. Waste Liquid Collection Bucket 1. Reagent Bucket 3. Power Cable 1.

Product advantages

Application field

Supporting machine for Kjeldahl nitrogen distillation
