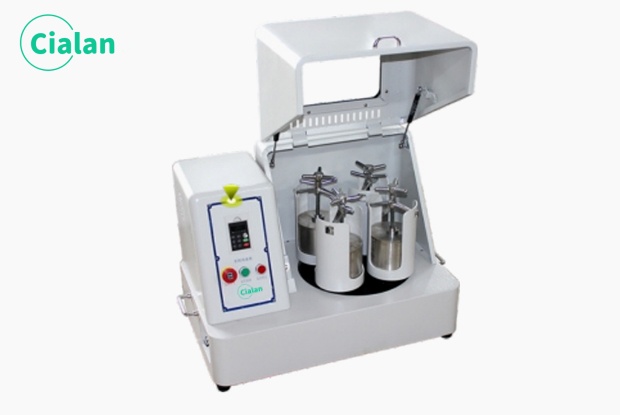

Vertical Square Planetary Ball Mill

The vertical Square planetary mill is a device for mixing, fine grinding, sample preparation, new product development and small batch production of high-tech materials.
Dry/Wet grinding method
2L~100L
Capacity
2~4
Work position
Share:
Product Details
Vertical Square ball mill:
1.It is a device for mixing, fine grinding, sample preparation, new product development and small batch production of high-tech materials.

2.It is a powder equipment used by scientific research institutions, universities and enterprise laboratories to obtain research samples (four samples can be obtained at the same time for each experiment). It is equipped with a vacuum ball milling tank, which can grind samples in a vacuum state.
Characteristics
The vertical semicircular planetary mill is widely used in geological, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and other departments.
It is suitable for electronic ceramics, structural ceramics, magnetic materials, lithium cobalate, lithium manganate, catalysts, phosphors, long afterglow phosphors, rare earth polishing powder, electronic glass powder, fuel cells, zinc oxide varistors, piezoelectric ceramics, nanomaterials, circular ceramic capacitors, MLCC Production fields of thermistors (PTC, NTC), ZnO varistors, dielectric ceramics, alumina ceramics, zirconia ceramics, fluorescent powder, zinc oxide powder, cobalt oxide powder, Ni Zn ferrite, Mn Zn ferrite and other products.
Parameter
Model Capacity (L) Matached jar Power supply Power
(kw)
Time setting
(min)
Alternate running time
(min)
Revolution speed
(rpm)
Rotation speed
(rpm)
Noise
(dB)
CSM-2L 2 50-500ml 220V50Hz 0.75 1-9999 1-999 35-335 70-670 60
CSM-4L 4 250-1000ml
CSM-6L 6L 1-1.5L
CSM-8L 8 1-2L 1.5 35-290 70-580
CSM-10L 10 1-2.5L
CSM-12L 12 1-3L
CSM-20L 20 2-5L 380V50Hz 4 25-215 50-413 65
CSM-40L 40 5-10L 5.5 20-195 40-390 68
CSM-60L 60 10-15L 7.5 27-174 40-260
CSM-100L 100L 20-25L 11 27-160 40-240
