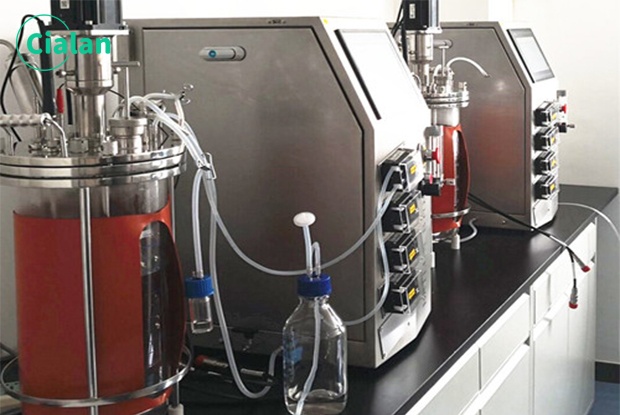

Single Wall Glass Bioreactor For Lab Cell Culture Fermentation Process

Cialan is the first tier manufacturer and supplier of bioreactor fermenter in China, we provide glass bioreactor, laboratory fermenter, cell culture bioreactor and professional after-service.
0.2L-40L etc
Volume
Glass
Materials
50%~70%
Working volume
Share:
Product Details
Single wall glass bioreactors CN-GJG are single layer glass tank with stainless steel 316L cover, heating by electric heating blanket, S316L cooling coil in tank. With magnetic or mechanical drive on the top, off-site sterilization, program auto control fermentation parameters, easy operation and clean, small and save place. All accept customize and design.
Parameter
Model Glass type
Total volume 0.2L,0.5L,1L,2L,3L,5L,10L,20L,30L,40L etc.
Working volume 50%~70%
Tank Full single glass vessel. Heating by electric blanket. Lid made by stainless steel 316L with ports, condenser on the cover.
Stirring system Mechanical drive or Magnetic drive on top, 3pcs height adjustable six- blade paddle. 1 foam breaker, Stir speed: 50~1000rpm/50-500rpm.
Sterilization Off-site sterilization(Autoclave)
Gas control Control by rotor meter, air flow 2vvm.
Feeding Automatically feeding by peristaltic pump
Anti-foam control Automatically add antifoamer by peristaltic pump
Temperature control Auto-control, electric heating range: water source add 5℃ to 70℃
PH control PH 2.00-12.00±0.1, auto-control adding acid/base by peristaltic pump, pH sensor from Hamilton/Mettler, Switzerland.
Do control 0-150±3% displaying precision 0.1%, DO sensor from Hamilton/Mettler, Switzerland. DO coupling with agitation, oxygen.
Sampling valve Manual
Control parameters 10 or 15 inch touch screen , Siemens PLC with control parameters (stirring, pH, DO, temperature, feeding, alarm, gas etc.), data analysis, data record, data output, language(RU/EN/CN) and other customized functions
Optional configuration Remote control, Mass flow meter(auto control gas),gas(CO2) exhaust analysis, Level sensor,Turbidity(OD) sensor, ORP sensor, Weight system, Printing, Live cell sensor(Biomass),  02/N2/cO2, Siemens touch screen, etc.
