Home > Products > Laboratory equipment > Centrifuge

500-15000rpm Capillary Mini Centrifuge

Capillary Centrifuge Mini type use centrifugal force to separate components in a mixture of liquid and solid particles or liquid and liquid.

500-12000rpm

Max Speed

1 type

Rotor type

13680×g

Max RCF

Quote Now Send Email

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

Capillary Centrifuge Mini type use centrifugal force to separate components in a mixture of liquid and solid particles or liquid and liquid.

Characteristics

Max.speed is 12000rpm, max. RCF 13680×g.

Precise control of speed and time separately.

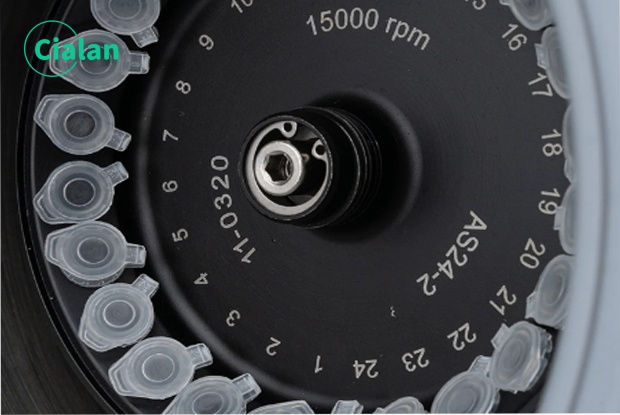

Rotor capacity: Hematocrit rotor: 24 capillary.

Mini type.

Tags:

Mini centrifuge

Parameter

Model	DM1224
Speed Range	500-12000rpm, increment: 100rpm
Max. RCF	13680×g
Speed Accuracy	±100
Rotor Capacity	1 type
Run Time	10sec-99min/Continuous
Motor	Brushless DC moto
Display	LCD
Safety Devices	Door interlock
Acceleration/Braking time	40s↑40s↓
Power	Single-phase, 200V-240V,50Hz/60Hz, 5A; 380W
Dimension [D×W×H]	280×364×213mm
Weight	10kg
Advanced Features	Speed/RCF switch;Short-time run function; sound-alert function
