Automatic Cascade Freezer

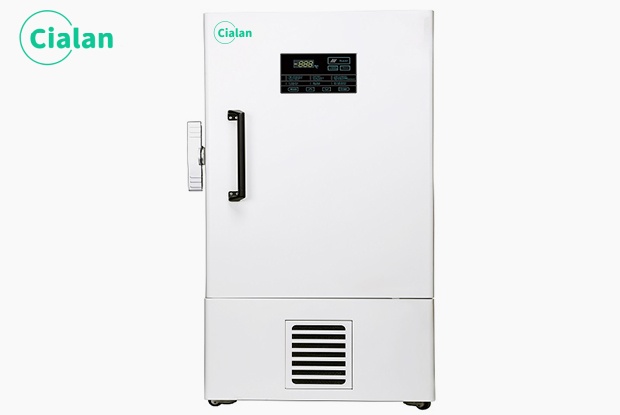

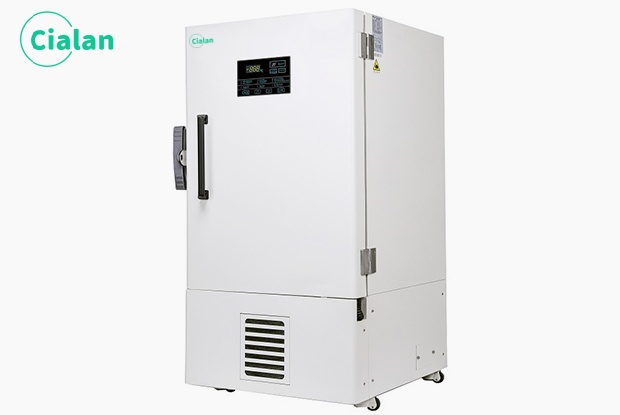

-86℃ Automatic Cascade System Ultra Low Temperature Freezer

Automatic Cascade ULT Freezer is specially designed and manufactured for long term storage of various biological products.

-40℃~-86℃

Temperature Range

180L/340L/408L/588L/728L/838L

Capacity

LED

Display

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

Automatic Cascade ULT Freezer is specially designed and manufactured for long term storage of various biological products . The ultra freezer with professional control system design to achieve balanced operation of cascade refrigeration system.

Characteristics

Large LED Display:Big LED Display is good for people who can control this ultra low freezer ,also monitor all data during the running .

Eco-Friendly:CFC Ultra-low power consumption, down to less than 10kWh/day, ensuring a world leading environmentally friendly performance

10 Types of Alarm:High and low temperature alarm, power failure alarm, high and low voltage alarm, sensor failure alarm, low battery alarm, condenser heat dissipation alarm, system failure alarm, etc, to ensure the safety of stored samples. Start-up delay and shutdown interval protection functions ensure reliable operation.

Energy Saving:The ultra-low temperature freezer adopts the unique secondary foaming technology, and the ultra-thick VIP insulation layer greatly improves the insulation effect; the VIP vacuum insulation board tightly locks the cold air to ensure the insulation effect.

Tags:

-86C ULT freezer

Parameter

Model	MDF-86T180E	MDF-86T340E	MDF-86T408E	MDF-86T588E	MDF-86T728E	MDF-86T838E
Technical data	MDF-86T180E	MDF-86T340E	MDF-86T408E	MDF-86T588E	MDF-86T728E	MDF-86T838E
Temperature Range	-40℃~-86℃
Defrost	Manual
Cooling Type	Direct Cooling System
Temp. Controller	Microprocessor
Ambient Temperature	10℃~32℃
Temp Fluctuation	±1℃
Display	LED

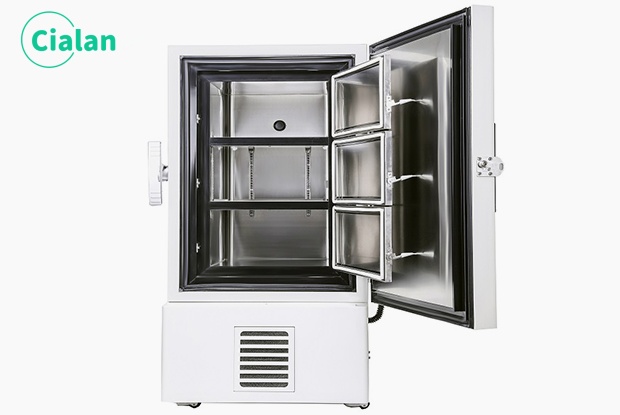

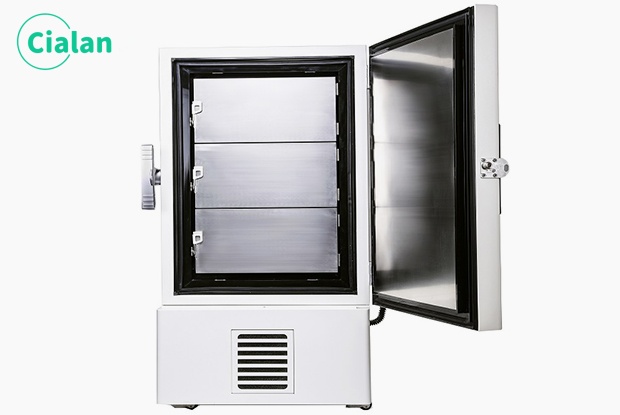

Shelf/Drawer	Stainless Steel Shelf/2	Stainless Steel Shelf/3	Stainless Steel Shelf/3	Stainless Steel Shelf/3	Stainless Steel Shelf/3		Stainless Steel Shelf/3
Insulation	PURF	PURF	PURF	VIP plus PURF	VIP plus PURF		VIP plus PURF
Racks	9(4X3)	12(4X4)	16(5X4,4X4)	16(5X5)	12(5X4)+12(6X4)		24(5X5)
Capacity（L/cu.ft)	188/6.63	340/12	408/14.40	588/20.76	12608902010		119010452010
Boxes (2 Inches)	108	192	288	400	504		600
Samples Loading QTY(2ml)	10800	19200	28800	40000	50400		60000
Dimensions(WDH)(mm)	8509301595	8759801900	9009401940	88511001995	12608902010		119010452010
