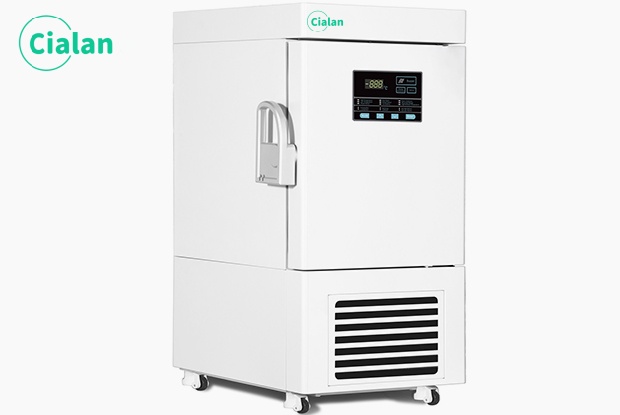

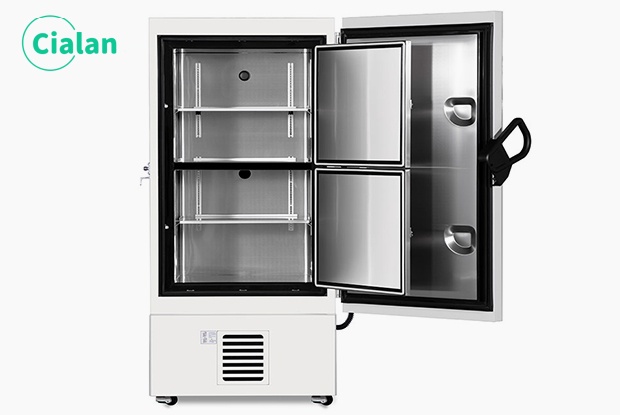

Reagent Vaccine Freezer Cabinet

-86℃ Hospital Biomedical Ultra Low Temp Freezer Cabinet For Reagent Vaccine Storage

Reagent Vaccine Freezer Cabinet is specially designed and manufactured for long term storage of various biological products

-40℃~-86℃

Temperature Range

340L

Capacity

LCD

Display

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

Reagent Vaccine Freezer Cabinet is specially designed and manufactured for long term storage of various biological products, with a new look , better ergonomics, a 7-inch touchscreen controller.The new generation products have made a great upgrade, the classic black and white color collection, in line with the aesthetics of more people. Thew NEW generation of E series ultra-low temperature freezers is out big release in the year of 2022. It has very competitive advantages in the global market.

Characteristics

New Classic Appearance:The classic black and white color collection,in line with the aesthetics of more people.

Extensions Function:Standard configuration with built-in USB data logger, remote alarm and RS485 interface. Optional chart recorder,water cooling system and CO2/LN2 backup system.

Better Performance:Advanced automatic cascade refrigeration system has better cooling efficiency and energy saving. The cooling speed increased by 10%, Also, the improved insulation technology makes the cooling loss reduced by 15%.

7-Inch LCD Touch Screen:A 7-inch LCD touch screen with android operating system is designed for this refrigerator, to enable users to operate conveniently and quickly.Eye level touch screen integrates temperature display,history graphs,alarms and event logging.

Easily Operated Door Handle:The door handle could be easily operated with one hand, and automatic pressure release port can allow the door to open and close frequently in daily use. File box is design for keeping daily record files.

10 Types of Alarm:High and low temperature alarm, power failure alarm, high and low voltage alarm, sensor failure alarm, low battery alarm, condenser heat dissipation alarm, system failure alarm, etc, to ensure the safety of stored samples. Start-up delay and shutdown interval protection functions ensure reliable operation.

Tags:

-86C ULT freezer

Parameter

Model	MDF-86T340C
Technical data	MDF-86T340C
Temperature Range	-40℃~-86℃
Cooling Type	Direct Cooling System
Temp. Controller	Microprocessor
Ambient Temperature	10℃~32℃
Temp Fluctuation	±1℃
Display	LCD
Shelf/Drawer	Stainless Steel Shelf/3
Insulation	PURF
Racks	12(4X4)
Capacity（L/cu.ft)	340/12
Boxes (2 Inches)	192
Samples Loading QTY(2ml)	19200
Dimensions(WDH)(mm)	8759801900
