ATR FTIR Spectrometer

ATR FTIR Spectrometer For Electronic Materials Testing

Cialan is the first tier manufacturer and supplier of FTIR machine in China, we provide atr ftir spectrometer, benchtop ftir, ftir spectroscopy and professional after-service.

7800-350cm-1

Wavenumber range

1.0cm-1

Resolution

30000:1

Signal noise ratio

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

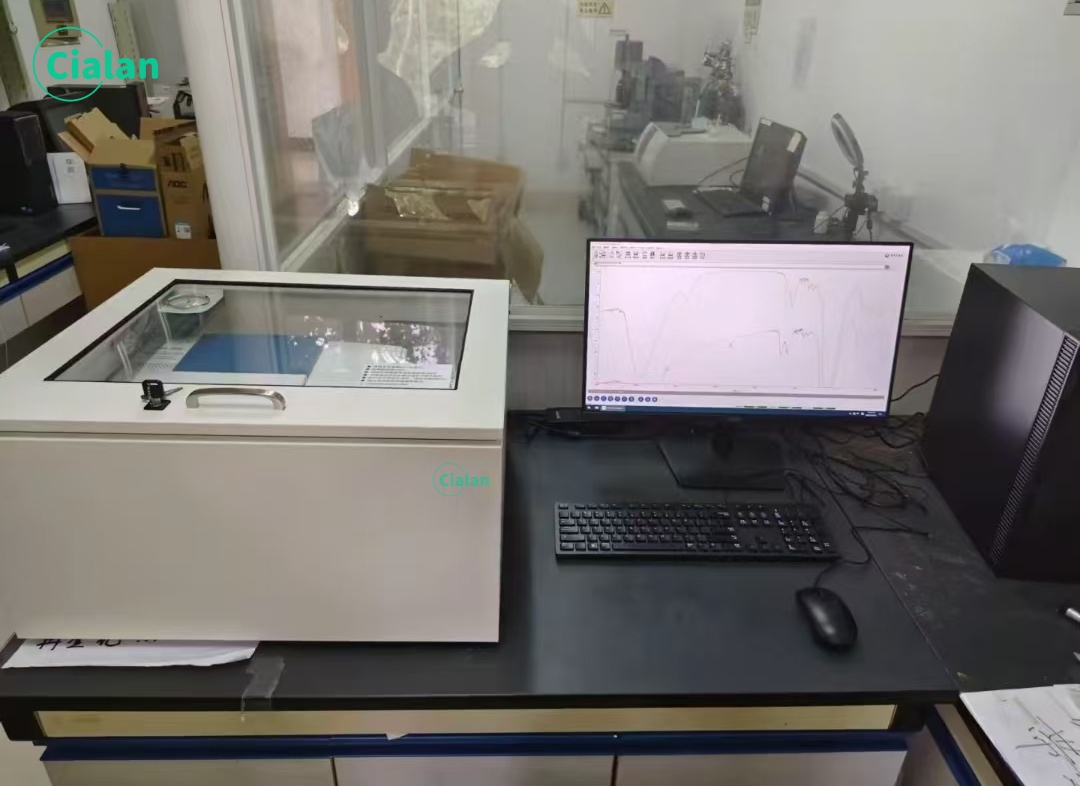

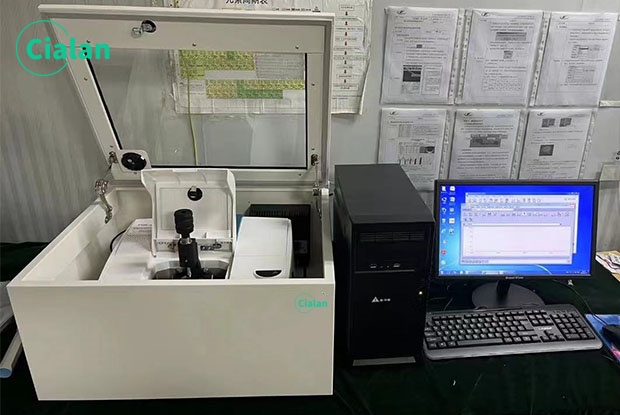

FTIR specrometer 650 is a single-beam FT-IR spectrophotometer. It is operated by a PC with user friendly software and a comprehensive manual. Fast scan speeds, high accuracy and ease with operation are standard features.

Committed to food safety, environmental health, biopharmaceuticals, packaging printing and dyeing, encapsulated coatings, automotive parts, oil analysis, construction materials, highway asphalt and other industries testing reliable partner.It can be used as a special test system for free silica in air, a special test system for Si02, a special test system for carbon and oxygen content in silicon, a special tester for fatty acid methyl ester content, and a special spectrum analyzer for solid waste.

Characteristics

The design integrates main components to an optical bench machined from a cast aluminium. Highly stable and no need for adjustment, removing troubles of maintenance of optical path

Precision machinery ensures high repeatability of every scanning, advanced design concept is adopted in both optical path and every part

The system’s corner cube optics provides easy operation without requiring complicated electronics and additional moving parts, in addition, many components of the spectrometer are user replaceable which saves time over the lifetime of the instrument

Internal dynamic collimation system and movable mirror driving system keep the interferometer at optimum situation.Voice-coil driver and precision slide improves the ability of working in severe conditions

The spectrometer includes a container of desiccant that pretecyts the beamsplit-ter and other optical components from moisture damage

Tags:

FTIR spectroscopy equipment

Parameter

Model	FTIR-650
Wavenumber range	7800-350cm-1
Resolution	1.0cm-1
Signal noise ratio	30000:1(P-P value, 4cm-1, sample and background scan for 1 min 2100cm-1)
Detector	High resolution DTGS detector
Beamsplitter	Multi layer coated KBr
Light source	Long life, air cooled IR light source
Electronic system	A/D converter of 24 bits at 500MHz, USB 2.0
Power	AC110V-220V, 50HZ
Dimensions	450mm350mm210mm
Weight	20kg

FTIR Machine Applications

FTIR Machine Components

FTIR Machine Cases
