Benchtop FTIR

Benchtop FTIR Spectroscopy Equipment For Polymers Analysis

Cialan is the first tier manufacturer and supplier of FTIR instrument in China, we provide FTIR Spectroscopy, FTIR spectrophotometer, FTIR spectrometry and professional after-service.

7800-350cm-1

Wavenumber range

0.95cm-1

Resolution

45000:1

Signal noise ratio

Product Details Characteristics Parameter Message

Quote Now Send Email

Product Details

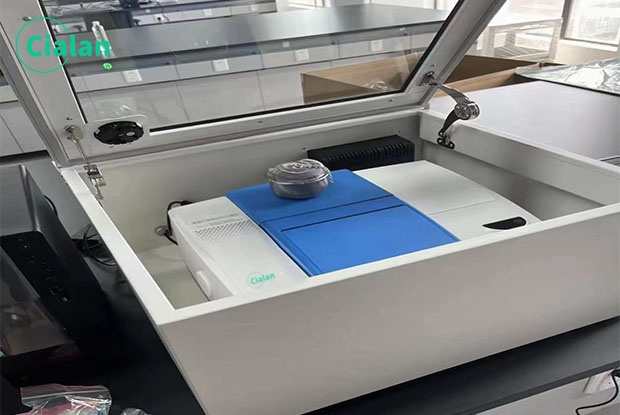

Atr-Ftir Spectrometer device 650S is a single beam FTIR spectrometer. This instrument is operated by a PC. It is a powerful tool to analyze the sample structure in many fields such as petroleum, chemical engineering and pharmaceutical.

Characteristics

The design integrates main components to an optical bench machined from a cast aluminum. Highly stable and no need for adjustment, re-moving troubles of maintenance of optical path.

Precision machinery ensures high repeatability of every scanning. Advanced design concept is adopted in both optical path and every part .

Internal dynamic collimation system and movable mirror driving system keep interferometer at optimum situation. Voice-coil driver and precision slide improves the ability of working in severe conditions.

The system’s corner cube optics provides easy operation without requiring complicated electronics and additional moving parts. In addition, many components of the spectrometer are user replaceable which saves time over the lifetime of the instrument.

The spectrometer includes a container of desiccant that protects the beam splitter and other optical components from moisture damage.

Tags:

FTIR spectroscopy equipment

Parameter

Model	FTIR-650S
Wavenumber range	7800-350cm-1
Resolution	0.95cm-1
Signal noise ratio	45000:1(P-P, 4cm-1, sample and background scan for 1 min 2100cm-1)
Detector	Imported high-sensitivity infrared detector
Beamsplitter	Multi layer coated KBr
Light source	Long life, air cooled IR light source, better than 30%
Linearity	0.1%
Electronic system	A/D converter of 24 bits at 500MHz, USB 2.0
Power	AC110V-220V, 50HZ
Dimensions	430mm360mm210mm
Weight	15kg
Support system	WIN 7. WIN10 professional

Atr-Ftir Spectroscopy Accessories

Item	Accessories	Description
1	ATR	ATR（diamond crystals） Used in Medical packaging materials
4	Pressed Powder	Solid powder sample preparation package
5	Liquid application	Liquid attachment for transmission coating analysis

Atr-Ftir Spectroscopy Applications

Atr-Ftir Spectroscopy Components

Atr-Ftir Spectroscopy Cases
