Electrical Conductivity Meter

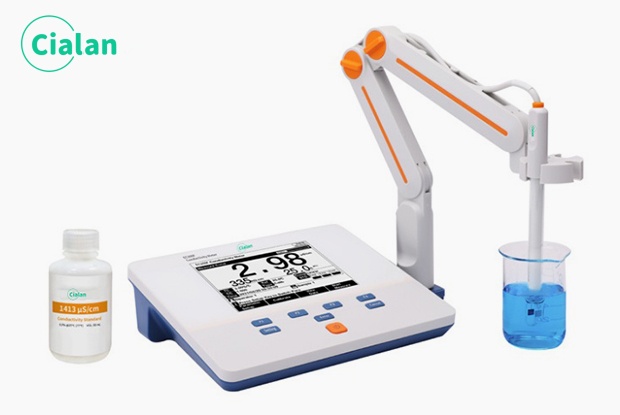

EC300F Benchtop Conductivity Meter

Water Conductivity meter is to measure the level of conductivity in solutions.

EC/Temp

Parameters

±1.0% FS

Accuracy

Up to 3

Calibration Points

Product Details Feature Parameter Message

Quote Now Send Email

Product Details

Water Conductivity meter is to measure the level of conductivity in solutions.

Includes
1.DJS-1VTC EC electrode
2.1413μS/cm EC standard solution, 50ml, 1 vial
3.Electrode stand

Feature

High resolution LCD display, 5.7 inches.

Multi-reading feature allows auto-read, timed-read and continuous-read.

Automatic/Manual temperature compensation ensures accurate results.

Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.

Data Storage 500 sets for each parameter (GLP-compliant).

Reset feature automatically resumes all settings back to factory default options.

IP54 waterproof.

1-3 points calibration with Standard Recognition.

Temperature compensation type (none, linear, pure water).

Support for USB or RS-232 communication.

Auto-hold feature senses and locks the measurement endpoint.

Tags:

Benchtop conductivity meter

Parameter

Model		EC300F
Parameters		EC/Temp.(Resistivity/TDS/Sal.)
Conductivity	Range	0.000 μS/cm to 1000 mS/cm
	Resolution	0.001 μS/cm minimum, various with range selection
	Accuracy	±1.0% FS
	Reference Temperature	20, 25 ºC
	Calibration Points	Up to 3
	Standard Recognition	84μS/cm, 1413μS/cm, 12.88mS/cm
Resistivity	Range	5.00 Ω·cm~20.00 MΩ·cm
	Resolution	0.01 Ω·cm minimum
	Accuracy	±1.0% FS
TDS	Range	0.00 ppm ~300 ppt
	Resolution	0.01ppm minimum, various with range selection
	Accuracy	±1.0% FS
Salinity	Range	(0.00~8.00)%
	Resolution	0.01%
	Accuracy	±0.2%
Temperature	Range	-5.0 to 110 ºC, 23.0 to 230 ºF
	Unit	ºC, ºF
	Resolution	0.1
	Accuracy	±0.2ºC
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data management	Data Storage	500 results each
Data management	GLP Features	Yes
Inputs	Conductivity with Temp. Probe	5-pin aviation connector
Outputs	USB	PC
Outputs	RS 232	printer
Display options	Backlight	Yes
	Auto Shutdown	1~60 min, off
	IP Rating	IP54
	Date and Time	Yes
General	Power	AC Adapter, 100-240V AC input, DC9V output
	Dimensions	242×195×68 mm
	Weight	900g (1.98 lb)
