Automatic Potential Titrator in acid base/complexation/redox/sedimentation titrations — Cialan

Cialan is the first tier manufacturer and supplier of titration equipment in China, we provide autotitrator, digital titrator, automated titrator and professional after-service.
1/30000
Resolution
(-2000.00~2000.00) mV, (0.000~20.000)pH
Range
LCD screen
Share:
General Features

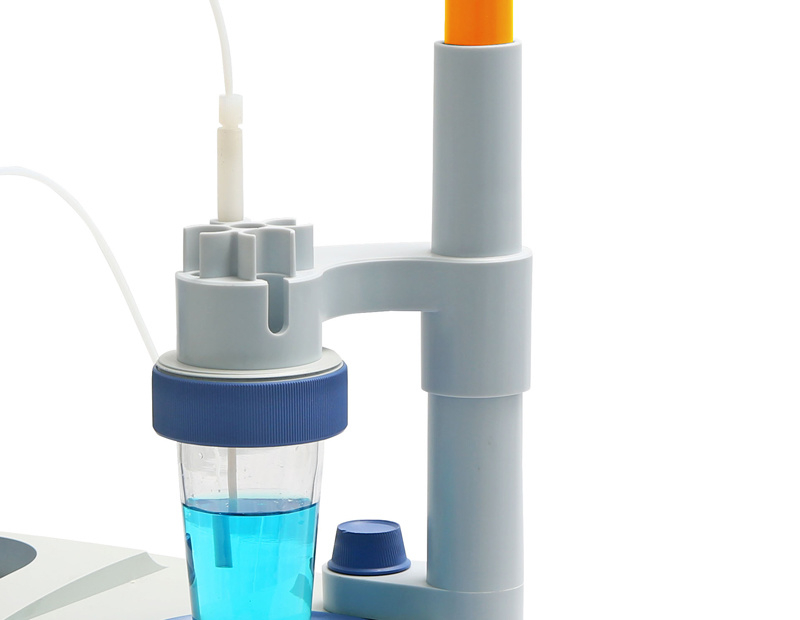

Auto Potential Titrator:
1. It supports the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).

2.pH calibration and measurement are supported.

Includes
1.10ml burette
2.232-01 referenc electrode
3.213-01 platinum electrode
4.216-01 silver electrode
5.217-01 referenc electrode
6.231-01 pH indicator electrode
7.T-818-B-6 Temperature probe
8.NIST pH standard solution(4.01, 7.00, 10.01) ,50ml/vial
Characteristics
7” colorful touchscreen and smart guide system.
Titration methods, curves and results are displayed in detail.
1 extra burette driver can be installed (optional).
Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.
Up to 100 user-defined methods and 10 user-defined shortcuts.
Auto calculation with pre-defined formula.
Store up to 200 titration data sets (GLP-compliant).
Data analysis feature helps user review, compare and recalculate results.
Data can be easily transferred to printer via RS-232 communication interface.
Titrator can be controlled by computer via USB or RS-232 communication interface.
Automatic sampler is supported.
Parameters
Model Ti-50
Burette Repeatability 0.2%
Accuracy 10ml Burette: ±0.020ml;
20ml Burette: ±0.030ml

Mechanical Unit Resolution 1/30000
Measuring Unit Range (-2000.00~2000.00) mV, (0.000~20.000)pH
Resolutions 0.01mV,
0.001pH
Accuracy pH: ±0.002pH
mV: ±0.03% or ±0.2mV
Fluctuation ±0.3mV/3h
Temp. Compensation Range (-5.0~105.0) ℃
Resolutions 0.1 ℃
Accuracy ±0.2 ℃)
General Power Supply AC Adapter, 100-240V AC input, DC24V output
Dimensions 340×400×400 mm
Weight 10 kg





Titrators applications









Titrators parts















Titrators calculations







Titrators electrodes
